Introduction

This guide explains how to place a kayak fish finder wireless antenna system in a manner that maximizes signal strength and operational range. One will learn the essential preparation steps, the correct mounting techniques, and the best practices for cable management. The information is valuable for anglers who require reliable communication with shore stations and accurate GPS positioning while navigating shallow waters. By following the procedures, one can achieve a professional installation without specialized tools.

What You’ll Need

• Tram 35-Inch VHF Antenna – $51.99, rating 4.6/5 (623 reviews)
• Shakespeare Galaxy 4' VHF Antenna – $159.00, rating 4.8/5 (97 reviews)
• Bingfu Marine GPS Antenna – $19.99, rating 4.4/5 (234 reviews)
• Eifagur VHF Marine Radio Antenna – $32.99, rating 4.4/5 (75 reviews)
• Newashan Marine GPS Antenna – $33.99, rating 4.2/5 (37 reviews)
• Stainless‑steel mounting brackets (often included with the antennas)
• Marine‑grade cable ties and zip ties
• Adjustable wrench and screwdriver set
• Water‑proof dielectric grease
• Multimeter for VSWR verification

Step 1: Select the Appropriate VHF Antenna

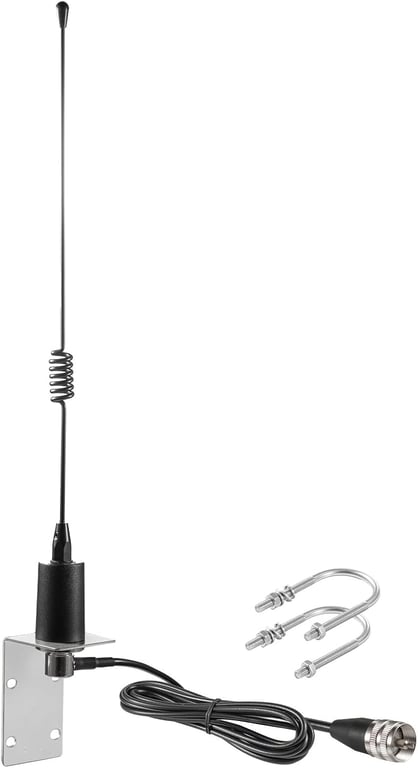

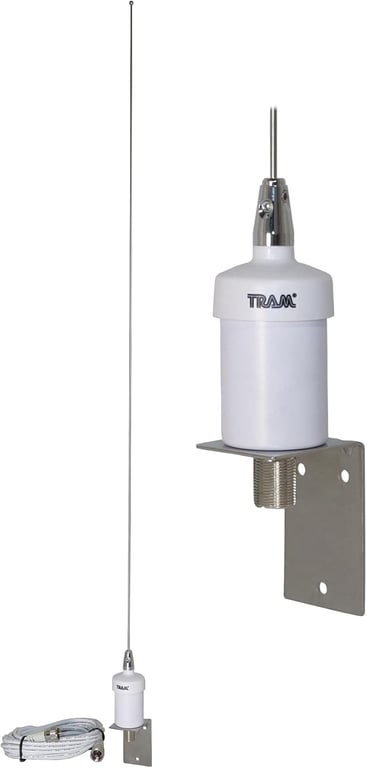

The first decision concerns the VHF antenna that will provide voice communication and weather updates. The Tram 35-Inch VHF Antenna offers a 6 dB gain, a low‑profile design, and a 15‑foot RG58 cable with PL‑259 connectors, making it suitable for small vessels such as kayaks. Its stainless‑steel whip and L‑bracket ensure corrosion resistance in a marine environment. For users who desire higher gain and a longer cable, the Shakespeare Galaxy 4' VHF Antenna provides a 3 dB gain and includes a 20‑foot cable, although it carries a higher price point. The Eifagur VHF Marine Radio Antenna presents a budget‑friendly alternative with a 2.5 dBi gain and a 5‑meter low‑loss cable. Selecting the antenna depends on the desired balance between gain, cable length, and cost.

Step 2: Prepare the Mast or Mounting Point

Kayaks typically lack a permanent mast, therefore a lightweight pole or a short aluminum mast must be installed. One should choose a location that offers an unobstructed line of sight toward the horizon, ideally near the bow where the hull does not block the signal. The stainless‑steel L‑bracket supplied with the Tram antenna can be fastened to the mast using the allen‑style set screws; the same method applies to the Shakespeare and Eifagur brackets. Prior to drilling, one must verify that the mast material can tolerate the screw size and that the bracket will not interfere with the kayak’s stability. Applying a thin layer of dielectric grease to the screw threads prevents galvanic corrosion in saltwater.

Step 3: Install the VHF Antenna

With the mast prepared, the installer should slide the antenna onto the bracket and tighten the set screws until the whip is secure but not deformed. The Tram antenna’s bottom‑loaded coil design reduces wind resistance, which is advantageous for a kayak that may experience gusts while paddling. After mechanical attachment, the 15‑foot RG58 cable should be routed along the interior of the mast, secured with marine‑grade zip ties at 12‑inch intervals to avoid chafing. The PL‑259 connector at the antenna end must be inspected for proper sealing; the positive customer sentiment notes that the connectors are well pressed and sealed, ensuring water resistance. The opposite end of the cable connects to the VHF radio’s antenna port, and the VSWR should be measured with a multimeter to confirm that it remains below 2.0, indicating efficient power transfer.

Step 4: Install the GPS Antenna for the Fish Finder

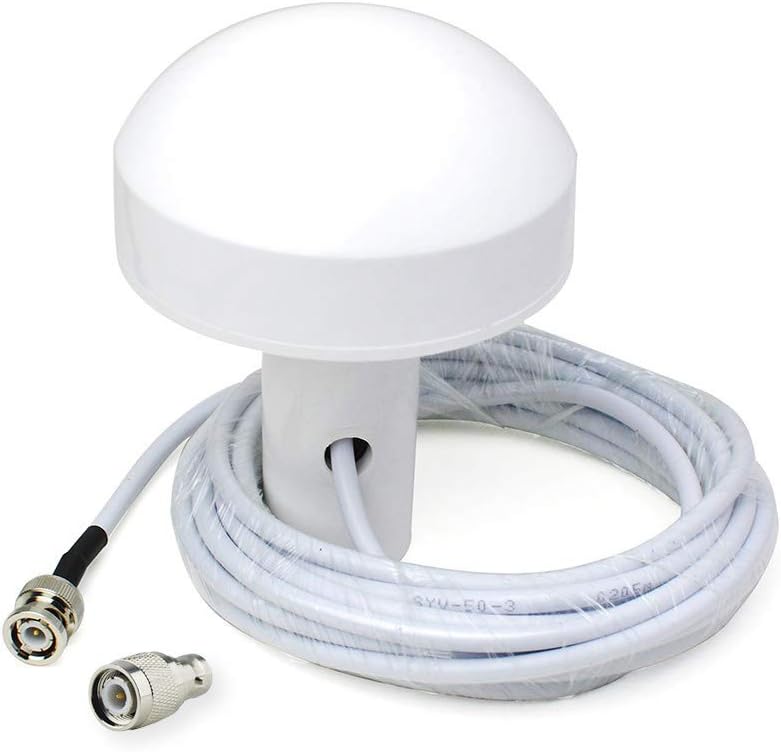

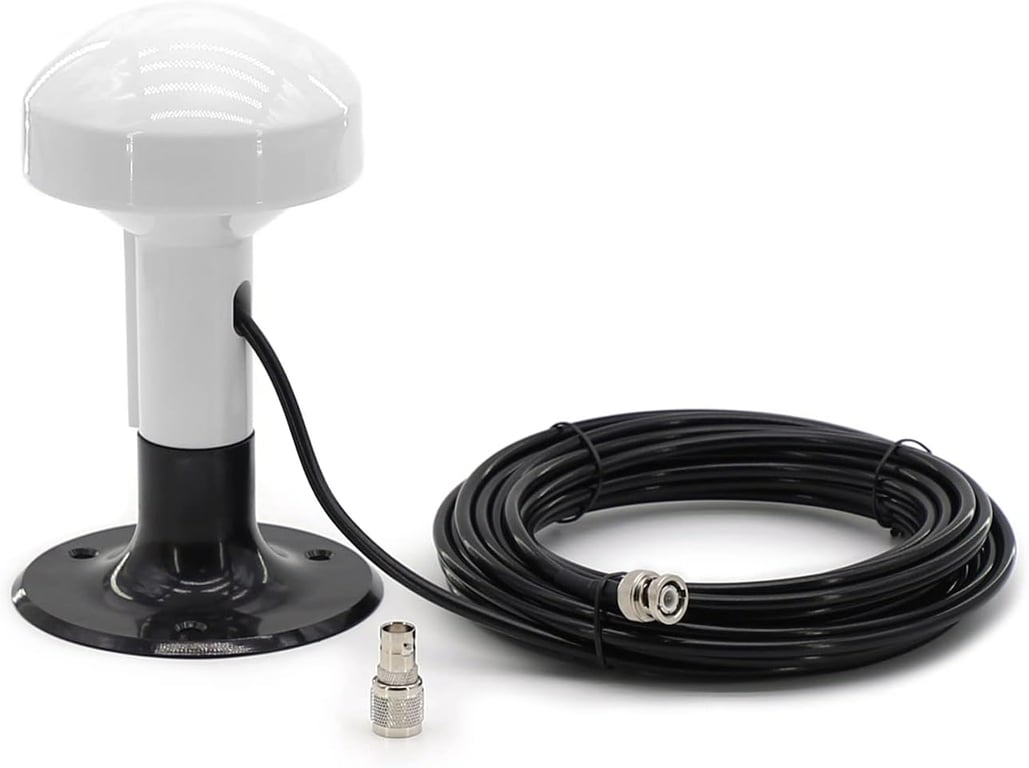

The fish finder requires a clear view of the sky to acquire satellite signals; therefore the GPS antenna should be mounted at the highest point possible, preferably on the same mast but separated from the VHF antenna by at least six inches to avoid interference. The Bingfu Marine GPS Antenna includes a 16.5‑foot cable with a BNC male connector and a TNC‑to‑BNC adapter, making it compatible with most Garmin and Humminbird units. Its 28 dB LNA gain ensures strong signal reception even in heavily wooded waterways. For users with longer cable runs, the Newashan Marine GPS Antenna provides a 26‑foot cable, a waterproof IP65 housing, and a TNC male connector with a BNC adapter, allowing flexible placement on a pole or the kayak’s deck rail. The installer should attach the antenna using the supplied mounting base, ensuring the mounting hole faces upward for optimal sky exposure.

Step 5: Route and Secure the Coaxial Cables

Both VHF and GPS cables must be protected from abrasion, UV exposure, and water ingress. One should run each cable parallel to the kayak’s hull, securing them with zip ties that are spaced no more than 18 inches apart. The cables should be clamped at any points where they cross structural members to prevent movement while the kayak is in motion. It is advisable to use cable sleeves or heat‑shrink tubing over the connector junctions, especially where the GPS antenna’s TNC‑to‑BNC adapter meets the fish finder. The use of marine‑grade cable ties eliminates the risk of corrosion that can occur with standard plastic ties.

Step 6: Connect, Power Up, and Verify Signal Strength

After all mechanical installations are complete, the VHF radio and fish finder should be powered on. The VHF unit should be set to a clear channel, and a radio check should be performed with a nearby vessel or a coast‑guard station; a clear transmission confirms proper antenna alignment and VSWR compliance. For the GPS antenna, the fish finder’s satellite acquisition screen should display at least six satellites within a few minutes, indicating adequate signal strength. If the GPS display shows weak or intermittent signals, the installer should verify that the antenna is not obstructed by metal components and that the cable connectors are fully seated. Adjusting the antenna’s orientation by a few degrees often resolves minor reception issues.

Tips & Pro Tips

• Apply dielectric grease to all connector threads to prevent moisture ingress.
• When using the Tram antenna, consider trimming the 15‑foot RG58 cable to the exact length required, as customers have noted the convenience of a custom‑length cable.
• Mount the GPS antenna on a non‑metallic pole if possible; metal can create a ground plane that reduces satellite visibility.
• Periodically inspect the stainless‑steel brackets for signs of pitting or corrosion, especially after prolonged exposure to saltwater.
• Use a handheld VHF scanner to verify that the installed antenna provides a stronger signal than the factory‑mounted unit.

Troubleshooting

No VHF transmission: Verify that the PL‑259 connector is fully engaged and that the antenna’s set screws are tightened. Measure VSWR; a reading above 2.5 suggests a damaged cable.

GPS shows no satellites: Ensure the antenna faces upward and is not shadowed by the kayak’s deck. Check that the TNC‑to‑BNC adapter is correctly oriented; reversing the connector can result in a loss of signal.

Interference between VHF and GPS: Increase the separation distance between the two antennas to at least six inches. Use ferrite beads on the coaxial cables to suppress common‑mode noise.

Conclusion

By following this step‑by‑step guide, one can install a VHF antenna and a GPS antenna on a kayak, thereby extending the range and reliability of a fish finder system. The recommended products provide a blend of performance, durability, and value, ensuring that the installation will withstand the harsh marine environment. Proper mounting, cable management, and verification of signal quality are essential to achieving optimal results. One is encouraged to perform regular maintenance checks to preserve the integrity of the antenna system throughout the fishing season.

Products Mentioned in This Guide

Frequently Asked Questions

Where should I mount the fish finder wireless antenna on a kayak for best signal?

Mount it on the highest, unobstructed part of the kayak, such as the bow or a raised deck rail, to keep the antenna clear of the water and hull.

What height is ideal for the kayak antenna to maximize range?

Aim for at least 12‑18 inches above the waterline; the higher the antenna (without compromising stability), the stronger the signal.

Are any special tools required to install a kayak fish finder antenna?

No specialized tools are needed; a basic screwdriver, zip ties, and waterproof tape are sufficient for most installations.

How can I protect the antenna cable from water and wear?

Route the cable along the kayak’s deck, secure it with zip ties, and seal connections with marine‑grade tape or heat‑shrink tubing.

Can a VHF antenna be used with a fish finder wireless system?

Yes, a VHF antenna can serve as the external antenna for many wireless fish finders, provided it matches the system’s frequency range.
